Manual Pallet Trucks

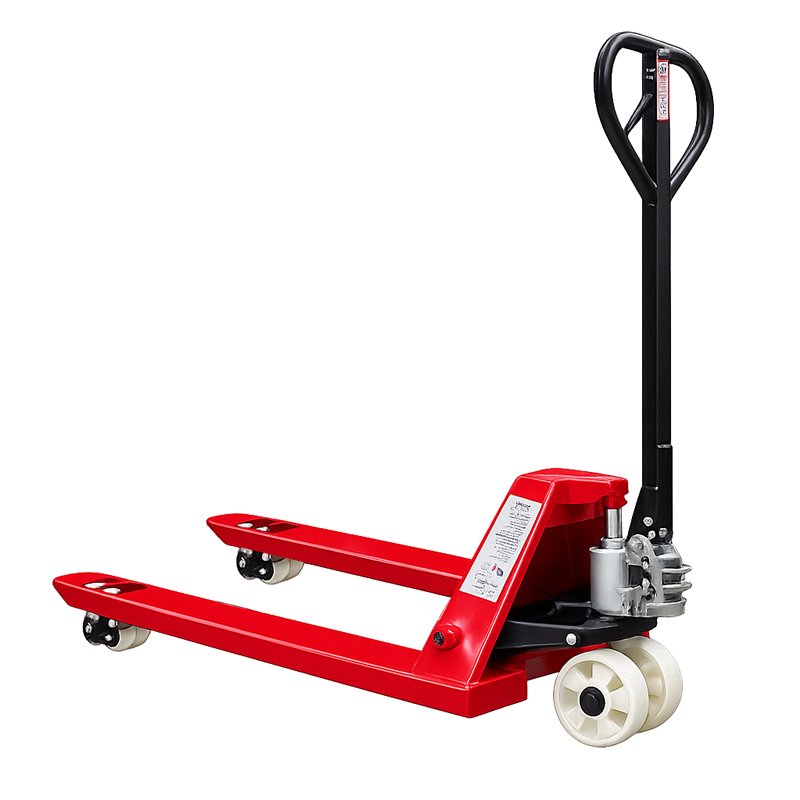

Manual pallet trucks are designed for efficient pallet handling in warehouses, factories, and logistics centers. They are durable, easy to operate, and ideal for short-distance material transportation.
Always on time
Acceptable price
Excellent quality
Add to InquiryContact Us
描述
Durable and easy-to-use manual pallet truck for efficient pallet handling in warehouses, factories, logistics centers, and supermarkets.
| Name | Value |
|---|---|
| Product Type | Manual Pallet Truck |

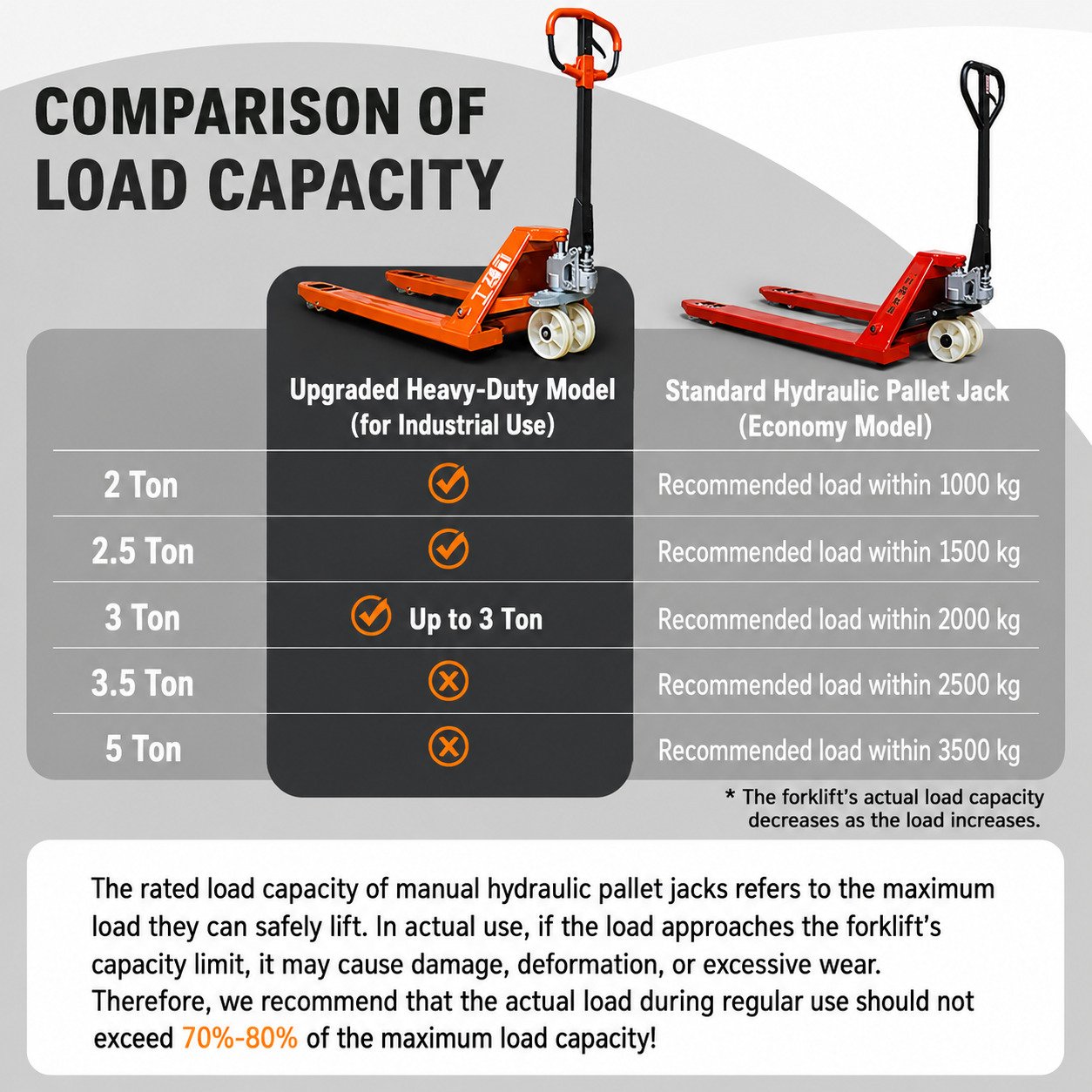

| Load Capacity | 2000 kg, 2500 kg, 3000 kg，5000kg |

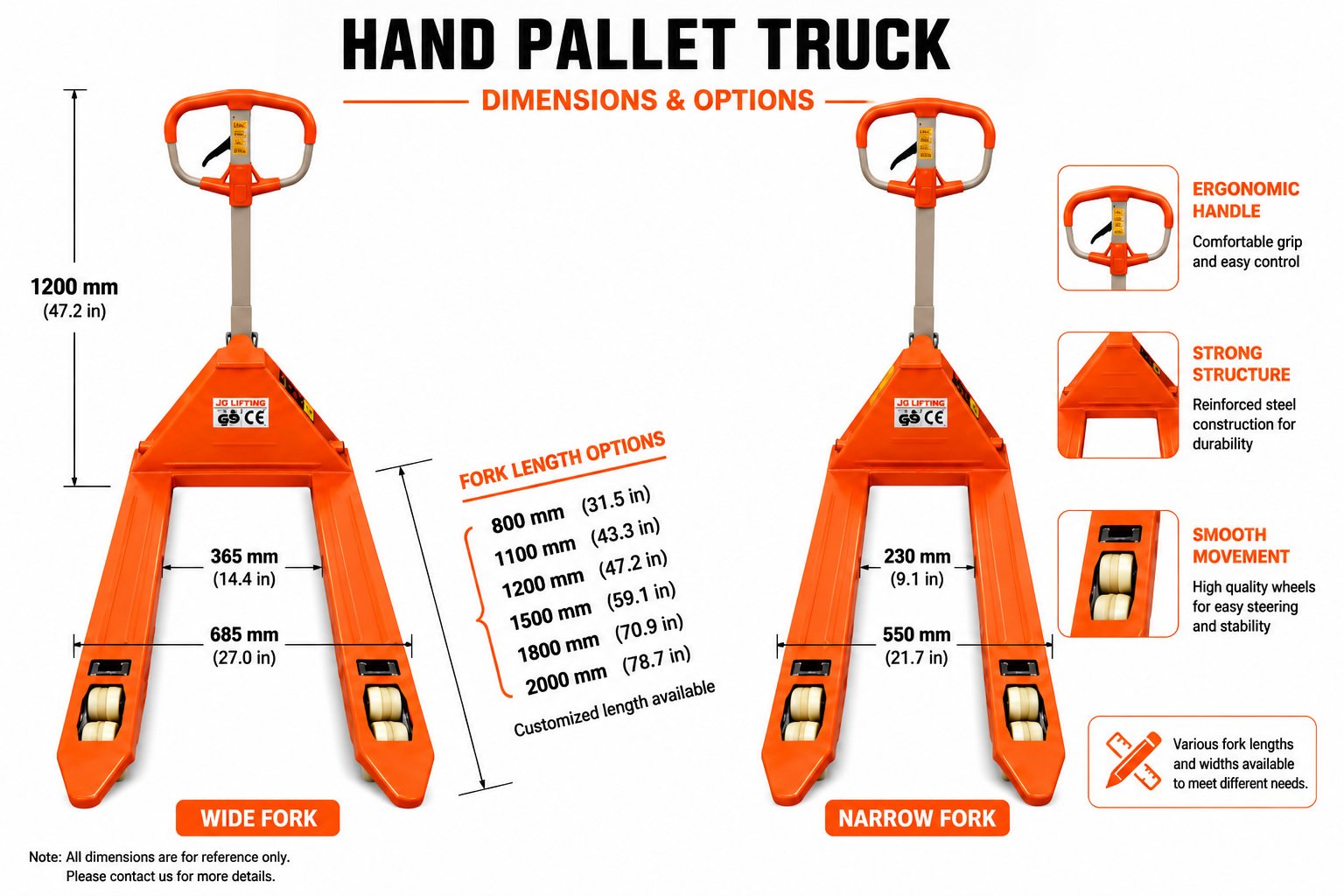

| Fork Length | 1100 mm, 1200 mm,1500mm,1800mm |
| Fork Width | 550 mm, 685 mm |

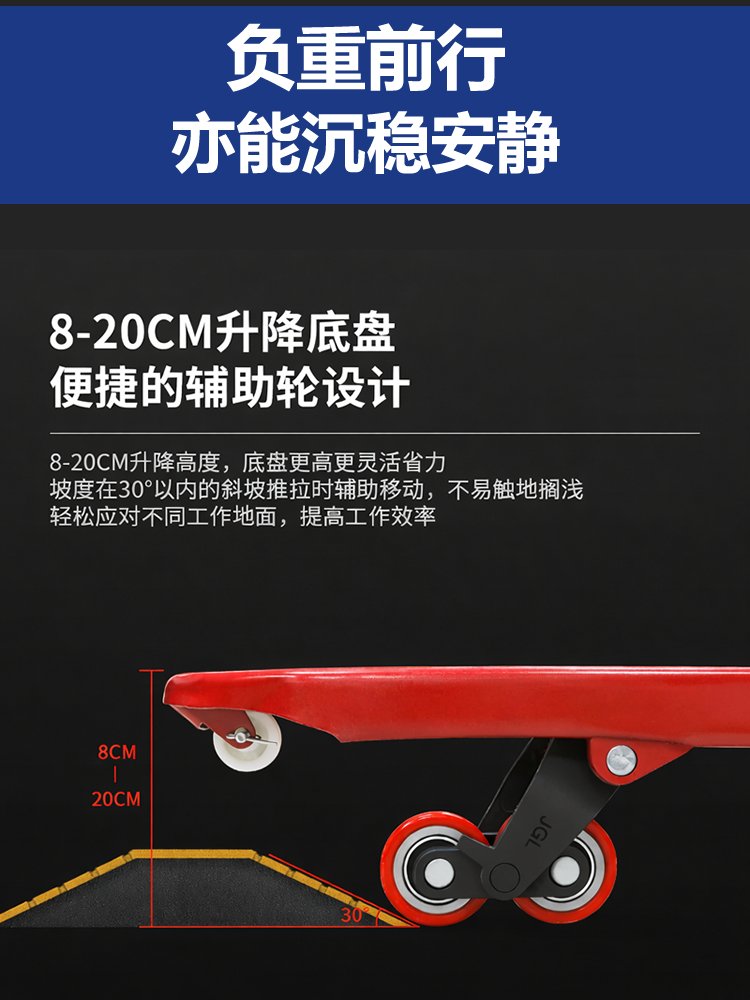

| Min. Fork Height | 80 mm |
| Max. Fork Height | 200 mm |

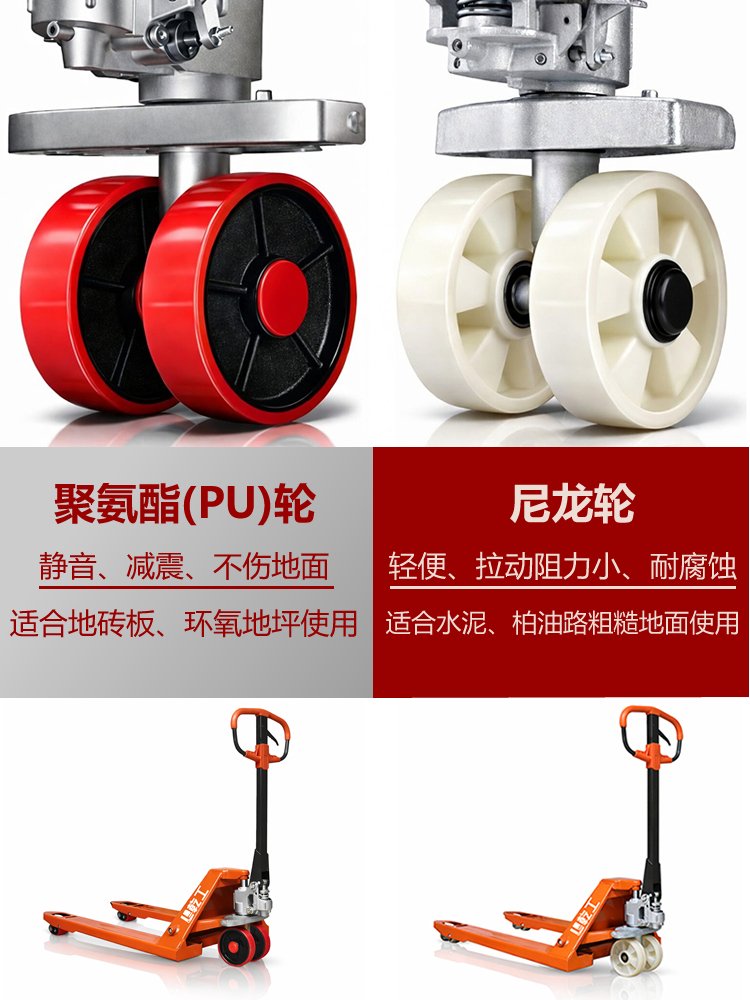

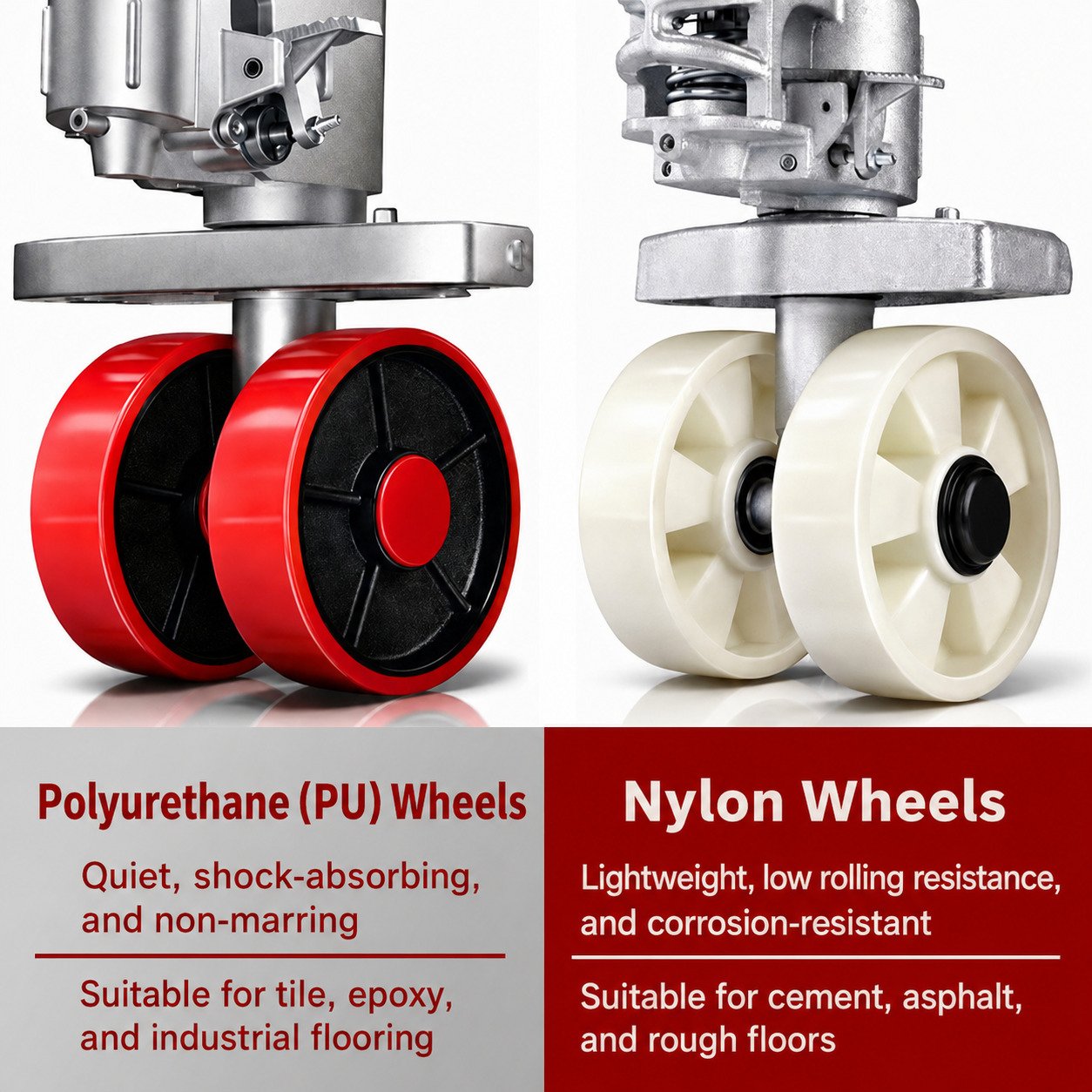

| Wheel Material | PU, Nylon, Rubber |
| Lifting Type | Manual Hydraulic Lifting |
| Frame Material | High-strength Steel |
| Application | Warehouses, Factories, Logistics Centers, Supermarkets |

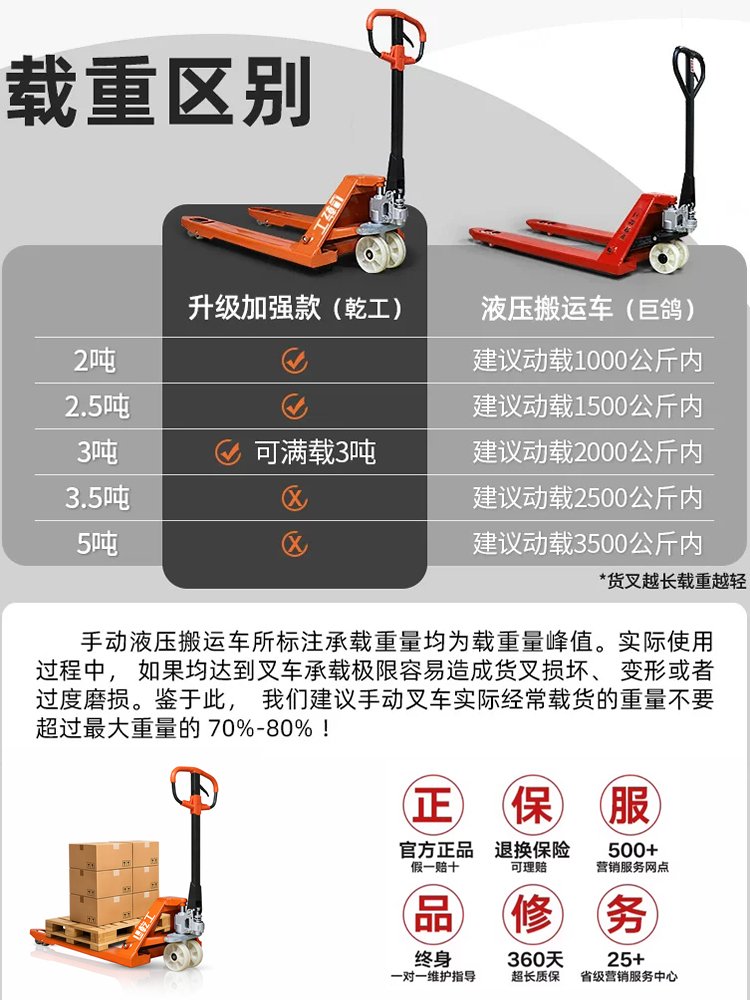

| Model | JG-1 Standard | QG-1 Heavy Duty | DZ-1 Scale Pallet Truck |
| Capacity | 2T / 2.5T / 3T /3.5T/ 5T | 2T / 2.5T / 3T /3.5T/ 5T | 2T / 3T |
| Hydraulic Unit | Standard | Reinforced Casting Pump | Scale Hydraulic Pump |
| Frame Strength | Standard | Heavy Duty Reinforced Frame | Standard |
| Full Load Operation | ★★★★ | ★★★★★ | ★★★ |
| Weighing Function | ✘ | ✘ | ✔ |
| Best For | Daily Warehouse Use | Heavy Industrial Use | Weighing & Handling |
|
Specification |
2T |
2.5T |
3T |
3.5T |
5T |
|
Min. Fork Height |
80 mm |
80 mm |
80 mm |
80 mm |
80 mm |
|
Max. Fork Height |
200 mm |
200 mm |
200 mm |
200 mm |
200 mm |
|
Fork Length |
800mm / 1100mm / 1200mm / 1500mm / 1800mm / 2000 mm |
||||
|
Overall Fork Width |
550 / 685 mm |
550 / 685 mm |
550 / 685 mm |
550 / 685 mm |
550 / 685 mm |
|
Steering Wheel |
Ø180 × 50 mm |
Ø180 × 50 mm |
Ø180 × 50 mm |
Ø180 × 50 mm |
Ø180 × 50 mm |
|
Load Roller |
Ø74 × 70 mm |
Ø74 × 70 mm |
Ø74 × 70 mm |
Ø74 × 70 mm |
Ø80 × 70 mm |
|
Net Weight |
50-57 kg |
53-59 kg |
64-73 kg |
68-85 kg |
85-115 kg |
